| POWDER COMPACTING PRESS MAIN BODY SPECIFICATION |
| MODEL |
PT-250(PM-250) |
| MAX PRESSING CAPACITY(ton) |
250 |
| EJECTION CAPACITY(ton) |
125 |
| DIE FLOAT STOP CAPACITY(ton) |
125 |
| TOP PUNCH STROKE (mm) |
200 |
| TOP PUNCH ADJUSTMENT (mm) |
AUTO 100 |
| MAX DEPTH OF FILLING (mm) |
AUTO 150 |
| MAX EJECTION STROKE (mm) |
AUTO 100 |
| OVER FILL (mm) |
7.5 |
| SPEED DEVICE |
INVERTER |
| STROKE PER MINUTE (spm) |
6-24 |
| STROKE SPEED ADJUSTMENT |
REVOLVER OR AUTO |
| CLUTCH & BREAK |
AIR PRESSURE TYPE |
| TOP PUNCH HOLD DOWN |
EQUIPED |
| DIE FLOATER ADJUSTMENT (mm) |
MANUAL ±7.5 |
| LUBRICATION |
AUTO |
| FEEDER DEVICE |
CAM VIBRATION |
| STROKE OF FEEDER (mm) |
230 |
| POWDER TANK CAPACITY (L) |
140 |
| MAX DIAMETER OF PRODUCT |
150ψ |
| POWDER CHECK SENSOR |
EQUIPED |
| LAST PRESSING STROKE( mm) |
0~10 AUTO |
| DIE FLOAT CONTROL DEVICE |
AUTO |
| PRESS INDICATOR |
HIGHER HIGH & LOW LIMIT |
| ANGLE CONTROLLER |
ELECTRON 48 POINT |
| ACCUMULATIVE COUNTER |
EQUIPED 7 NUMBERS |
| PRODUCTION COUNTER |
EQUIPED 7 NUMBERS |
| AIR CONSUMPTION |
500 L / MIN (16SPM) |
| POWER SOURCE VOLTAGE |
3∮ 220V 380V 440V 50Hz 60Hz AS SIGH |
| OPERATE VOLTAGE |
110V 60Hz DC24V |
| OPERATION |
INCHINE CONTINIOUS SAFETY ONE CYCLE REV |
| MAIN MOTOR (kw) |
37 |
| WEIGHT OF PRESS |
30 TON |
| DIMENSION OF MACHINE H×D×W (mm) |
H 6690 ×W3000×D 2295 |

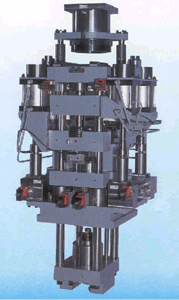

| DIE SET SPECIFICATION |
| TOP PUNCH STOP CAPACITY(ton) |
250 |
| UPPER 2ND PUNCH STOP CAPACITY(ton) |
125 |
| DIE FLOAT STOP CAPACITY ( ton) |
125 |
| LOWER 1ST PUNCH STOP CAPACITY(ton) |
200 (MOVABLE) |
| LOWER 2ND PUNCH STOP CAPACITY(ton) |
200 (MOVABLE) |
| LOWER 3RD PUNCH STOP CAPACITY(ton) |
250 (FIXED) |
| CORE STOP CAPACITY(ton) |
－ |
| UPPER 1ST PUNCH ADJUSTMENT STROKE(mm) |
15 EQUIPED |
| UPPER 2ND PUNCH ADJUSTMENT STROKE (mm) |
15 EQUIPED |
| LOWER 1ST PUNCH FILLING ADJUSTMENT(mm) |
100 EQUIPED |
| LOWER 2ND PUNCH FILLING ADJUSTMENT(mm) |
100 EQUIPED |
| CORE EJECTION ADJUSTMENT(mm) |
80 EQUIPED |
| UPPER 2ND PUNCH GAP ADJUSTMENT(mm) |
3 EQUIPED |
| LOWER 1ST GAP ADJUSTMENT(mm) |
50EQUIPED |
| LOWER 2ND PUNCH GAP ADJUSTMENT(mm) |
50EQUIPED |
| LOWER 1ST PUNCH ADJUSTMENT(mm) |
±5 INDIVIDUAL |
| LOWER 2ND PUNCH ADJUSTMENT(mm) |
±5 INDIVIDUAL |
| FLOATING CORE(mm) |
EQUIPED |
| CORE ROD (mm) |
EQUIPED |
| WEIGHT OF DIE SET (kg) |
3000 |
